5.1.5.1. Overview

The Reports tab offers an overview of the standard reports that have been defined in Produmex.

It includes a reference to the shared folder (Report path, Coresuite report path) where the reports are stored and makes it possible to set the report parameters:

  • Format in which the report is created (for example Crystal Reports, CoreSuite)
  • Name
  • Page size
  • Orientation
  • Type
  • Path from the entered report path

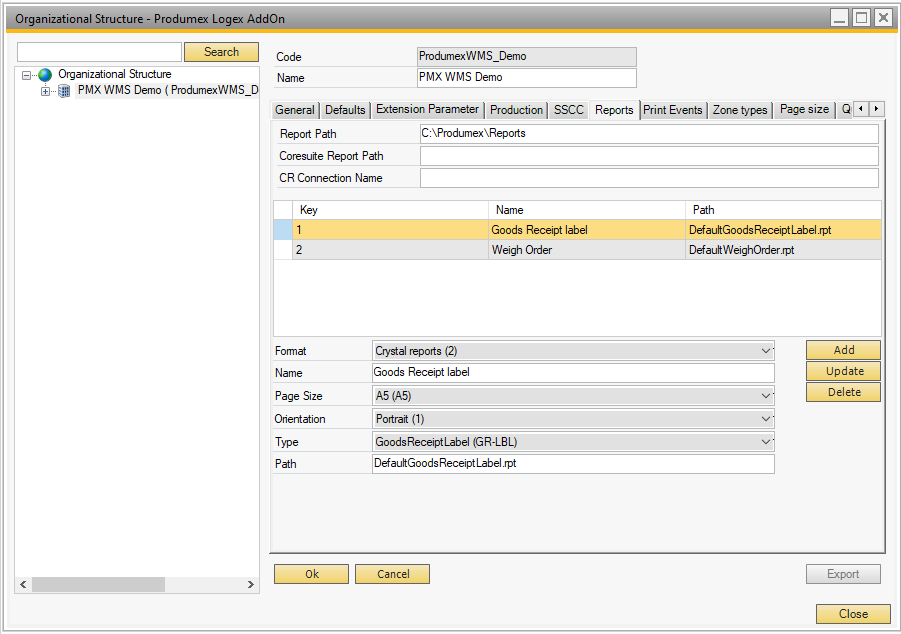

Reports tab

5.1.5.2. Configuration

Step 1. Select the format you wish to use from the Format drop-down menu:

  • A) Crystal Reports: uses the reports you download with your Produmex installation file.
  • B) Crystal Reports by SAP: uses the default reports that are stored within SAP.
  • C) Coresuite: uses the reports available in Coresuite.
  • D) Unknown: can be used for custom report types.

Step 2. The next step depends on the format you have selected in step 1:

  • A) Crystal Reports: Provide the path of the reports in the Report Path field.
    • MSSQL:
      You can find the reports in your installation folder and you can add its path to the Report path field, for example: C:\Install\Produmex_WMS_X_X.x64\Reports\MSSQL.
    • HANA:
      Consult with HANA Report Setting Tool.
      • CR Connection Name field (optional): If you use a HANA environment, some connection information needs to be provided for Crystal Reports, for example DbServer. By default, the CR Connection Name field is not filled in and the DbServer is used that is available from the connection. If the DBserver is not the right information for your report, fill in the CR Connection Name field and the value is passed to Crystal reports.
  • B) Crystal Reports by SAP: Check the ID of the report, then add the ID into the Path field. When the system starts printing, it gets the report with this ID from the database.
  • C) Coresuite: When printing the system creates a file to a certain folder. The field Coresuite report path needs to be filled in with a folder where the file needs to be stored. The Coresuite add-on picks up the file and prints the report.

Step 3. Provide the necessary report parameters.

  • Name
  • Page size
  • Orientation
  • Type
  • Path from the entered report path

Step 4. Click ADD and the list of the added reports is displayed in the grid.
