| - | ==== 3.1.2. Creating a new TAB per server ==== | + | ==== 3.1.2. Create a new tab per server ==== |
| - | For each server that will have a Produmex WMS component installed, a new tab needs to be created on the Suite Installer screen. Typically, we have at least 2 servers. | + | For each server that will have a Produmex WMS component installed, a new tab must be created on the Produmex Suite Installer screen. Typically, there are at least 2 servers. |
| * SAP server with the Produmex Tools, Fat Client & License Service (and other optional services) installed. | * SAP server with the Produmex Tools, Fat Client & License Service (and other optional services) installed. | ||
| - | * Terminal server with the Produmex Fat Client (= scanner application) installed. | + | * Terminal server with the Produmex Fat Client installed. |
| - | <wrap round important>The Produmex license server should be installed on the same server as the SAP license server.</wrap> | + | Note: The Produmex license server should be installed on the same server as the SAP license server. |

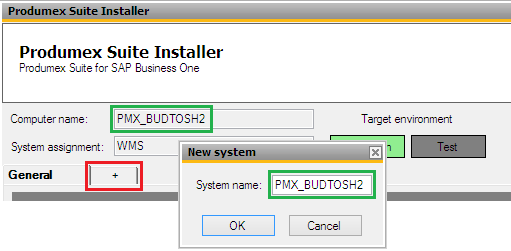

| - | Add a new tab (for the SAP server in this example) by clicking on the + icon next to the General tab and provide the name of the SAP server: | + | 1. Add a new tab (for the SAP server in this example) by clicking on the + icon next to the General tab. |
| - | {{:implementation:install:installguide:suite_new_tab.png?nolink|}} | + | 2. Provide the name of the SAP server and click ''OK''. |
| - | === 3.1.2.1. Selecting required components for server === | + | {{ :implementation:install:boyum:5._creating_a_new_tab.png |Creating a New Tab}} |
| - | + | ||
| - | {{ :implementation:install:installguide:1.select_required_components_for_server.png |Selecting the required components}} | + | |
| - | + | ||
| - | 1. With this button, you can tell the application that this is the server you are currently working on. | + | |
| - | This will be saved so the SuiteInstaller will open on the correct tab, depending on what server you are opening it on. So we need to start by pushing this button to assign this server. | + | |
| - | + | ||
| - | 2. When the button was pushed, we can see the name of the server appearing on the “System assignment” field. | + | |
| - | + | ||
| - | 3. With these checkboxes, you can decide what will have to be installed on this server. Typically, a SAP server has the Tools, License Server and Fat Client installed. | + | |
| - | If you need an SBO Notification Listener or a Scalecomm service, they are typically also installed on the SAP server. | + | |
| - | + | ||
| - | * SBO Notification Listener: This is a tool (service) to perform certain actions that are triggered by adding/updating/deleting data in SAP. | + | |
| - | * Scalecomm service: This is a service that can be used to integrate with scales. | + | |
| - | + | ||
| - | 4. This shows the current version of the Produmex WMS. | + | |
| - | + | ||
| - | 5. This shows the version of the Produmex WMS that you are about to install. | + | |
| - | + | ||
| - | 6. The ''Install'' buttons allow you to install the components one by one. | + | |
| - | + | ||
| - | 7. The ''Uninstall'' buttons allow you to uninstall the components one by one. | + | |
| - | + | ||
| - | 8. The ''Config'' buttons are used to configure the Tools and the License Server (and the optional SBO Notification Listener). | + | |
| - | + | ||
| - | 9. ''Install all'' / ''Uninstall all'': these buttons will install or uninstall all the checked components. | + | |
| - | + | ||
| - | 10. Has custom files checkbox indicates if there are custom files to be installed, such as customer specific workflowscripts. If this is tagged, you will be prompted for the directory where the custom files are unzipped to. This directory will have a name such as “Project_OEC_1_0_0_327”. | + | |
| - | + | ||
| - | === 3.1.2.2. Installing components === | + | |
| - | + | ||
| - | 1. In this example, we have checked the Tools, License Server and Fat Client. Install the components one by one or click ''Install all''. | + | |
| - | + | ||

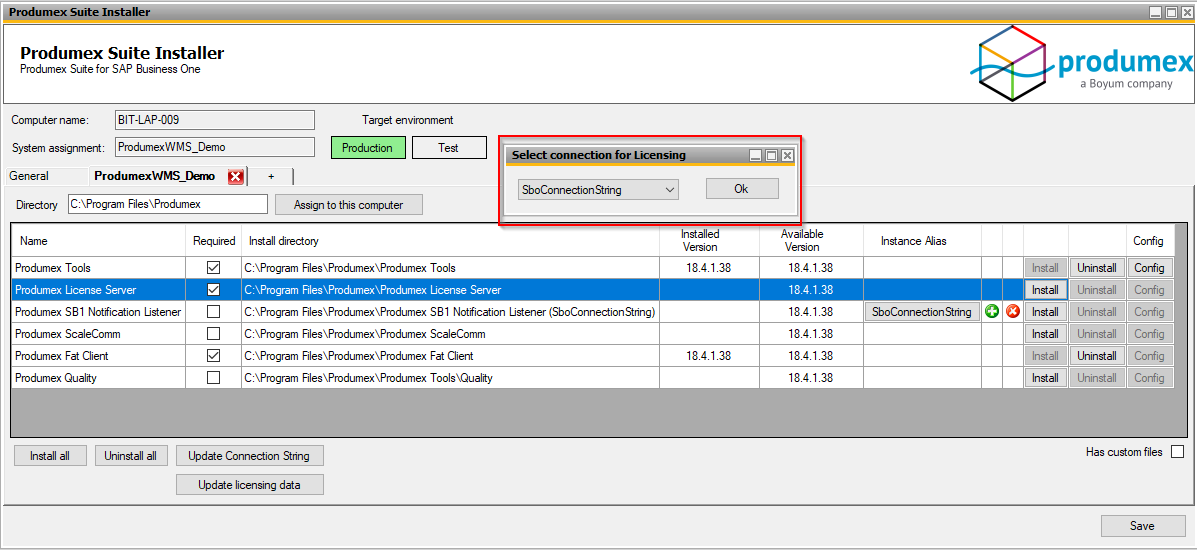

| - | 2. When you install the components one by one and click on the ''Install'' button of the License Server or click on the ''Install all'' button, the Produmex Suite Installer will display the //Select Connection for Licensing// window. In its drop-down menu you will see all your connections that you can use for licensing, therefore, if you have multiple installation numbers, make sure that you select the connection from where the appropriate installation number will be retrieved. | + | |
| - | + | ||
| - | {{ :implementation:install:installguide:2._select_connection_for_licensing.png |Select Connection for Licensing}} | + | |
| - | + | ||

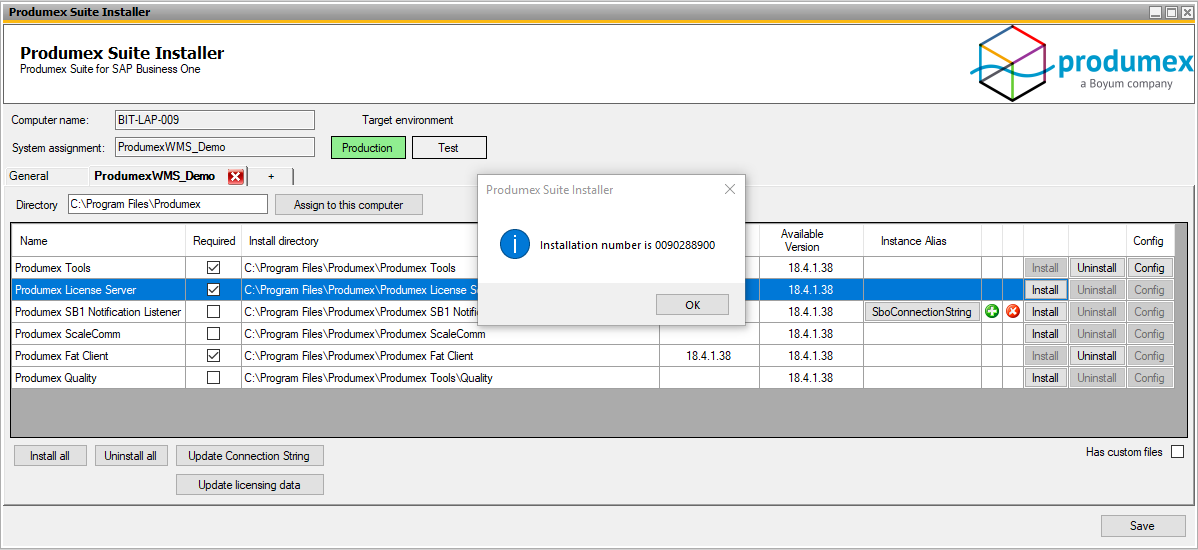

| - | 3. After selecting the connection, click ''OK'' and the Produmex Suite Installer will display your installation number. | + | |
| - | + | ||
| - | {{ :implementation:install:installguide:3._displaying_installation_number.png |Installation number}} | + | |
| - | + | ||
| - | //Note: In case there is a change in your licensing in the future and you need to change the connection, you can simply click on the ''Update licensing data'' button of the Produmex Suite Installer window, choose the appropriate connection and restart the service without reinstalling it.// | + | |
| - | + | ||

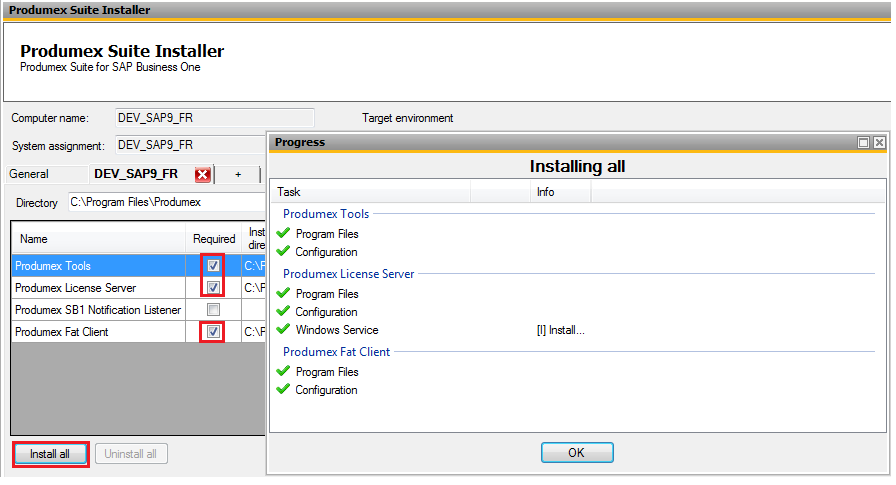

| - | 4. Click ''OK'' and if you have clicked ''Install all'' previously, the installation of the selected components will start. | + | |
| - | + | ||
| - | {{:implementation:install:installguide:install_all.png?nolink|Installing components}} | + | |
| - | + | ||
| - | //Note: It is not possible to have more than one Produmex License Server and Scalecomm service version installed on a server.// | + | |
| - | + | ||

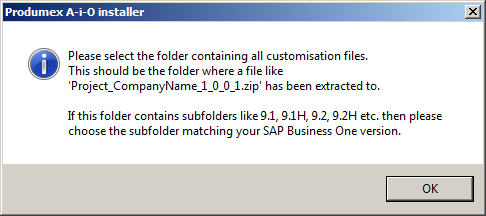

| - | 5. If you have checked in the //Has custom files// option on the //General// tab, you will be prompted to locate the directory. Click ''OK''. | + | |
| - | + | ||
| - | {{:implementation:installer_systemtab_2.png?nolink|Selecting customization files}} | + | |
| - | + | ||

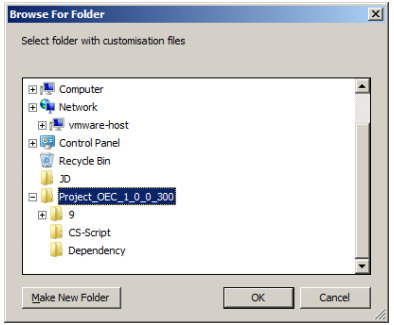

| - | 6. Locate the directory where you can find the files and click ''OK''. | + | |
| - | + | ||
| - | {{:implementation:installer_systemtab_3.png?nolink|Browsing the folder of the customization files}} | + | |
