| + | ===== 7.1. Variable GTIN ===== | ||
| + | |||
| + | Variable GTIN barcodes are GTIN barcodes, where a quantity is encoded in the barcode. | ||
| + | This quantity can have different purposes, and the part of the barcode that holds the variable value can be different for each prefix. | ||
| + | |||
| + | This possibility in a GTIN barcode depends on the country where this product is used. | ||
| + | This means that a certain prefix in a country could have a different meaning in another country. | ||
| + | |||
| + | To be able to handle this difference there is some configuration required to make the variable GTIN barcode scanning work in Produmex. | ||
| + | |||
| + | ==== Variable GTIN configuration (UDT: PMX_VGTC) ==== | ||
| + | |||
| + | Here the configuration of what prefixes are a variable GTIN barcode, and what purpose of the variable value means, is stored. | ||
| + | |||
| + | |||
| + | {{:implementation:pmx_vgtc_variable_gtin_configuration.png?nolink|}} | ||
| + | |||

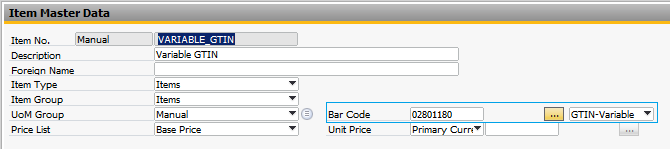

| + | ==== Item master data ==== | ||
| + | |||
| + | On the item master data the fixed part of the variable GTIN barcode needs to be stored.\\ | ||
| + | And a barcode type the value GTIN-Variable needs to be selected. | ||
| + | |||
| + | {{:implementation:variable_gtin_-_item_master_data.png?nolink|}} | ||
| + | |||
| + | |||
| + | |||
| + | ==== Example ==== | ||
| + | |||
| + | Barcode on a label: | ||
| + | 02801180070405 | ||
| + | |||
| + | As a prefix the fixed part has been configured: 02801180.\\ | ||
| + | The start index is 8, and length is 5.\\ | ||
| + | This means that the following part is the variable part:\\ | ||
| + | 02801180<color red>07040</color>5 | ||
| + | |||
| + | The number of decimals is 3, which results in a quantity of: 07.040 = 7.04\\ | ||
| + | |||
| + | The purpose of this value is the 'Net weight in Kg'. | ||
| + | |||
| + | So if the barcode 02801180070405 gets scanned on our client, the following happens: | ||
| + | |||
| + | * Check if the scanned barcode has a prefix available in the variable GTIN configuration | ||
| + | * Yes: | ||
| + | * Remove the variable part and check digit //(This is the last digit)// of the barcode: 02801180.\\ This value will be matched against the item master data. | ||
| + | * Get the value of the variable part: 7.04 | ||
| + | * Store that value in the field defined in the 'Value purpose' of the configuration: Net weight = 7.04 Kg. | ||
| + | * No: | ||
| + | * This will be regarded as a normal GTIN, and the barcode 02801180070405 will be matched against the item master data | ||
