This shows you the differences between two versions of the page.

Link to this comparison view

--- implementation:wms:adhocpicking [2019/10/10 10:31]
vise [19.5.2.5. Scan SSCC or location]
+++ implementation:wms:adhocpicking [2020/05/25 08:12] (current)
vise
@@ Line 1: / Line 1: @@
-======19.5. Ad Hoc Picking======
+Path: [[implementation:wms:main|Produmex WMS]] > [[implementation:wms:functionalguide|Produmex WMS Functional Guide]] > [[implementation:wms:picking_flows|Performing the Picking Process]] >
-To start the picking, press the **Ad hoc picking** button. The button can be reached via the path: Sales > Ad hoc picking.
-Select a pick task.
+======Ad Hoc Picking Flow ======
-  * To pick for a customer collect pick list, press the **Customer collect** button.
-  * To pick based on a pick list, press the **Pick list** button.
-  * To pick based on a route, press the **Route** button.
-{{ :implementation:wms:functional:pickingflows:adhoc:task.png |Task}}
+===== Overview =====
+This documentation describes the prerequisites, the configuration steps and the three tasks of the Ad Hoc Picking flow - Customer Collect, Picklist and Route - on the Mobile Client.

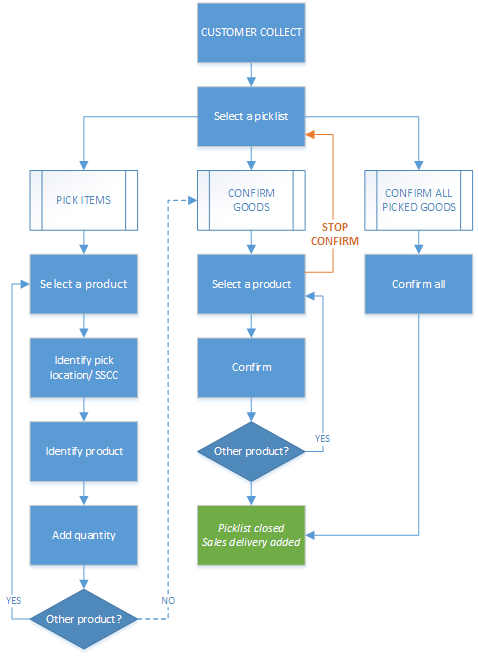

-=====19.5.1. Customer collect=====
+{{:implementation:wms:functional:pickingflows:adhoc:ad_hoc_picking_tasks_4.png?450|Ad Hoc Picking flow}}
-{{map> :implementation:wms:functional:pickingflows:adhoc:customer_collect_fc.png |Flowchart}}
-  * [[implementation:wms:adhocpicking#select_a_pick_list|Select a pick list @ 200,85,305,145]]
-  * [[implementation:wms:adhocpicking#pick_items|Pick items @ 30,170,140,230]]
-  * [[implementation:wms:adhocpicking#select_a_product|Select a product @ 30,255,140,315]]
-  * [[implementation:wms:adhocpicking#scan_SSCC_or_location|Scan SSCC or location @ 30,337,140,397]]
-  * [[implementation:wms:adhocpicking#enter_the_number_of_items|Enter the number of items @ 30,505,140,565]]
-  * [[implementation:wms:adhocpicking#confirm_goods|Confirm goods @ 200,170,305,397]]
-  * [[implementation:wms:adhocpicking#confirm_all_picked_goods|Confirm all picked goods @ 365,170,475,315]]
-{{<map}}
-====19.5.1.1. Select a pick list====
+===== Prerequisites =====
-Scan or select a pick list. \\
-Only customer collect pick list will be listed. (Customer collect can be configured on the extended [[implementation:wms:shippingtypes|Shipping type]] form.)
-Displayed information:
+. Route task: The picklist is assigned to a route (see [[implementation:wms:routes|Routes Guide]]).
-  * Shipping ID
-  * Pick list number
-  * Customer code, description and barcode
-  * Due date
-  * User(s)
-Started pick lists are indicated with red background. \\
+. Customer Collect task: The //Customer Collect?// setting is set to Yes on the Picklist screen.
-Multiple users can work on the same pick list. {{ :implementation:wms:functional:pickingflows:adhoc:picklist.png |Pick list}}
-====19.5.1.2. Remarks====
+{{ :implementation:wms:functional:pickingflows:adhoc:customer_collect_picklist_screen.png|Picklist screen}}
-If //Pick and Pack remarks// were added to the pick list, the remark will be shown after selecting the pick list. Press the **Ok** button to acknowledge the remark.
-{{ :implementation:wms:functional:pickingflows:picking:remarks.png |Remarks}}
-====19.5.1.3. Select task====
+Note: If the //Is customer coming to collect goods?// setting is enabled on the Shipping Types form, the system automatically sets //the Customer Collect?// setting to true on the generated Picklist Proposal and Picklist screens.
-Press the **Pick items** button to pick the items. \\
-Press the **Confirm goods** button to confirm one by one that the products are loaded. \\
-Press the **Confirm all picked goods** button to confirm that the products are loaded in one step.
-{{ :implementation:wms:functional:pickingflows:adhoc:cc_task.png |Task}}
-===19.5.1.3.1. Pick items===
+{{ :implementation:wms:functional:pickingflows:adhoc:shipping_types.png |Shipping Types}}
-Please see: [[implementation:wms:adhocpicking#pick_list|2.2. Pick list]]
-After an item has been picked, the user can select the following tasks:
+===== Configuration =====
-  * Press the **Go to customer** button to go back to the 'Select a pick list' screen
-  * Press the **Pick more items** button to continue the picking
-{{ :implementation:wms:functional:pickingflows:adhoc:cc_task2.png |Task}}
+. Configure the [[implementation:wms:plty|Produmex Picklist Types UDT]].
+  * Make sure that the //Use for Production// option is not enabled for the picklist type.
+  * Make sure that the //Use for Ad Hoc Picking// option is enabled for the picklist type.
-===19.5.1.3.2. Confirm goods===
+. Configure the general settings related to the picking process on the [[implementation:wms:generalsettings|General tab]] of the Organizational Structure:
-Scan or select a product to pack and press the right arrow button. Every picked item from the pick list is displayed on the list.
-Press the **Stop confirmation** button to stop the loading and go back to the ‘Select a task’ screen.
+  * Picklist Proposal Allowed to Exceed Order
+  * Do Not Lock Stock on Picking
+  * Allow Overpicking
+  * Allow Overpicking (Customer Collect)
-{{ :implementation:wms:functional:pickingflows:adhoc:cc_product_conf.png |Product confirmation}}
+{{ :implementation:wms:functional:pickingflows:adhoc:general_tab.png |General settings}}
-**Confirmation** \\
+. Configure the [[implementation:wms:picklistcontroller#ad_hoc_picking|Ad Hoc Picking settings]] and the [[implementation:wms:picklistcontroller#general|General settings]] of the [[implementation:wms:picklistcontroller|picklist controller]].
-Press **Yes** to confirm that all products have been loaded.  The system will go back to the ‘Select a product to confirm’ screen. \\
-Press **No** to check the SSCC and the quantity during the confirmation. On the following screen scan or select the SSCC. Then add the item quantity the customer collected.
-Displayed information:
+===== Workflow =====
-  * Code of the loading dock
-  * Item code, description and barcode
-  * Quantity to load
-{{ :implementation:wms:functional:pickingflows:adhoc:cc_confirmation.png |Confirmation}}
-===19.5.1.3.3. Confirm all picked goods===
+{{map> :implementation:wms:functional:pickingflows:adhoc:ad_hoc_picking_16_05_20.png |Bild1584827405687}}
-Confirm all picked goods in one step.
+   * [[implementation:wms:picklistproposal|Picklist proposal@ 394,7,504,51]]
+   * [[implementation:wms:picklist|Picklist@ 397,97,510,151]]
+   * [[implementation:wms:adhocpicking&#start_the_flow_and_select_a_task|Ad Hoc Picking@ 386,189,518,252]]
+   * [[implementation:wms:adhocpicking&#start_the_flow_and_select_a_task|Select a task@ 385,311,521,360]]
+   * [[implementation:wms:adhocpicking&#select_a_route|Select a route@ 241,393,377,447]]
+   * [[implementation:wms:adhocpicking&#select_a_picklist|Select a picklist@ 384,491,517,543]]
+   * [[implementation:wms:adhocpicking&#customer_collectselect_a_task|Select a task@ 847,597,1003,670]]
+   * [[implementation:wms:adhocpicking&#identify_a_moveable_location|Identify a movable location@ 372,748,522,824]]
+   * [[implementation:wms:adhocpicking&#select_a_product|Select a product@ 374,882,522,939]]
+   * [[implementation:wms:adhocpicking#scan_the_GTIN_(AI_02)_of_the_product|Scan the GTIN (AI 02) of the product@ 101,868,240,895]]
+   * [[implementation:wms:adhocpicking&#express_ad_hoc_picking|Express Ad Hoc Picking@ 645,996,791,1023]]
+   * [[implementation:wms:adhocpicking&#express_ad_hoc_picking|Select a location@ 641,1111,791,1185]]
+   * [[implementation:wms:adhocpicking&#scan_sscc_or_location|Scan a source SSCC or a location@ 375,1113,523,1184]]
+   * [[implementation:wms:adhocpicking#scan_the_source_sscc|Scan the source SSCC@ 376,1274,522,1345]]
+   * [[implementation:wms:adhocpicking#select_a_pick_location|Scan / select a pick location@ 221,1212,366,1286]]
+   * [[implementation:wms:adhocpicking#select_a_pick_location|Scan or select a product@ 225,1395,365,1333]]
+   * [[implementation:wms:adhocpicking#skip_the_item|Skip item@ 260,1113,324,1138]]
+   * [[implementation:wms:adhocpicking#select_a_pick_location|No SSCC@ 276,1149,340,1173]]
+   * [[implementation:wms:adhocpicking#scan_a_pick_location|Scan / select a product@ 537,1269,683,1338]]
+   * [[implementation:wms:adhocpicking#scan_a_pick_location|Scan a location@ 559,1199,661,1221]]
+   * [[implementation:wms:adhocpicking&#enter_the_quantity|Enter the quantity to pick@ 376,1434,523,1504]]
+   * [[implementation:wms:adhocpicking&#customer_collectselect_a_task1|Pick more items?@ 181,1695,310,1795]]
+   * [[implementation:wms:adhocpicking&#all_items_are_picked|All items are picked@ 370,1713,532,1790]]
+   * [[implementation:wms:adhocpicking#other_tasks|Other movable location@ 549,923,700,951]]
+   * [[implementation:wms:adhocpicking&#customer_collectselect_a_product_to_confirm|Select a product to confirm@ 858,817,1005,880]]
+   * [[implementation:wms:adhocpicking&#customer_collectproduct_confirmation|Confirmation@ 856,914,1007,980]]
+   * [[implementation:wms:adhocpicking&#customer_collectselect_a_product_to_confirm|Stop confirmation@ 994,725,1076,765]]
+   * [[implementation:wms:adhocpicking&#customer_collectconfirm_all_picked_goods|Confirm all@ 1056,894,1206,962]]
+   * [[implementation:wms:flows_packing|Packing@ 592,2009,747,2079]]
+   * [[implementation:wms:shipping|Shipping@ 1,1915,152,1988]]
+   * [[implementation:wms:flows_packing|Packing@ 2,2082,153,2148]]
+   * [[implementation:wms:flows_packing|Packing@ 371,2127,525,2190]]
+{{<map}}
-Press the **Yes** button to confirm that all picked items have been loaded.  The system will close the pick list and will create the sales delivery. \\
+===== Ad Hoc Picking Flow Steps =====
-Press the **No** button to go back to the ‘Select task’ screen without confirming the loading.
-{{ :implementation:wms:functional:pickingflows:adhoc:cc_pack.png |Pack}}
+====1. Start the flow and select a task====
-=====19.5.2. Pick List=====
+On the Mobile Client select Sales > Ad Hoc Picking and select a task: Customer Collect, Picklist or Route.
-{{ :implementation:wms:functional:pickingflows:adhoc:ad_hoc_picking_pick_list_flow_resized.png |Ad Hoc Picking Flow - Pick List Task}}
+{{ :implementation:wms:functional:ad_hoc_picking_tasks_1.png |Start the flow}}
-====19.5.2.1. Select a pick list====
+Next step:
-Scan or select a pick list from the list. Every open pick list meeting the following criteria is listed:
+  * If you are performing a Route task, continue with step [[implementation:wms:adhocpicking#select_a_route|2. Select a route]]. \\
-  * Not linked to a route
+  * If you are performing a Customer Collect or a Picklist task, continue with step [[implementation:wms:adhocpicking#select_a_picklist|3. Select a picklist]]. \\
-  * Not customer collect
-  * The //Use for Production// option is not enabled for the [[implementation:wms:plty|pick list type]].
-  * The //Use for Ad Hoc Picking// option is enabled for the [[implementation:wms:plty|pick list type]].
-Pick lists belonging to a started wave are indicated with red color.
-Displayed information:
+====2. Select a route====
+Scan or select a route from the list. Every open route that contains at least one picklist is listed.
+Displayed information: route date, route number and route description (Template code)
+{{ :implementation:wms:functional:pickingflows:adhoc:route.png |Route}}
+Continue with step [[implementation:wms:adhocpicking#select_a_picklist|3. Select a picklist]].
+====3. Select a picklist====
+Scan or select a picklist from the list. Picklists belonging to a wave that is started are indicated with red color.
+The following information is displayed:
   * Shipping ID
-  * Pick list number
+  * Picklist number
   * Customer code, description and barcode
   * Due date
   * User(s)
-{{ :implementation:wms:functional:pickingflows:adhoc:pl_picklist.png |Pick list}}
+{{ :implementation:wms:functional:pickingflows:adhoc:pl_picklist.png |Select a picklist}}
-====19.5.2.2. Remarks====
+Continue with step [[implementation:wms:adhocpicking&#pick_and_pack_remarks|4. Pick and pack remarks]].
-If a pick and pack remark is added to the pick list, the remark is shown after selecting the pick list. Tap ''OK'' to acknowledge the remark.
-{{ :implementation:wms:functional:pickingflows:picking:remarks.png |Remark}}
+====4. Pick and pack remarks====
-====19.5.2.3. Select a product====
+If a pick and pack remark is added to the picklist, the remark is shown after selecting the picklist. Tap ''OK'' to acknowledge the remark.
-On the //Select a Product// screen every item from the pick list with open quantity to pick is listed.
+{{ :implementation:wms:functional:pickingflows:picking:remarks.png |Pick and pack remark}}
-Displayed information:
+Next step:
+  * If you are performing a Customer Collect task, continue with step [[implementation:wms:adhocpicking#customer_collect_picklistselect_a_task|5. Customer Collect Picklist: Select a task]]. \\
+  * If you are performing a Picklist task or a Route task, continue with step [[implementation:wms:adhocpicking#identify_a_moveable_location|6. Identify a moveable location]].
+====5. Customer Collect: Select a task====
+On the Select a task screen you have the following options:
+  * Tap the ''Pick items'' button to start picking the items. \\
+  * If you have already performed a picking process, tap the ''Confirm goods'' button to confirm one by one that the products are loaded or tap the ''Confirm all picked goods'' button to confirm in one step that the products are loaded.
+Note: The ''Confirm all picked goods'' button is displayed on the screen if the //Allow confirmation that all goods were picked// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]] and the picklist does not contain any item managed by Produmex serial numbers.
+{{ :implementation:wms:functional:pickingflows:adhoc:cc_task.png |Task}}
+Next step:
+  * If you have tapped the ''Pick items'' button, continue with step [[implementation:wms:adhocpicking#identify_a_moveable_location|6. Identify a moveable location]].
+  * If you have tapped the ''Confirm goods'' button, continue with step [[implementation:wms:adhocpicking#customer_collectselect_a_product_to_confirm|16. Select a product to confirm]].
+  * If you have tapped the ''Confirm all picked goods'' button, continue with step [[implementation:wms:adhocpicking#customer_collectconfirm_all_picked_goods|18. Confirm all picked goods]].
+====6. Identify a moveable location====
+If the //Allow to select a moveable location during ad hoc picking// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the Identify moveable location screen is displayed.
+Note: If the //Auto selection of moveable location during picking?// setting is enabled on the [[implementation:wms:picklistcontroller#general|picklist controller]], the moveable location is automatically selected and the Identify moveable location screen is not displayed. In this case continue with step [[implementation:wms:adhocpicking#select_a_product|9. Select a product]].
+On the Identify moveable location screen you have the following options:
+  * Scan a moveable location or tap the ''Select moveable location'' button and select a moveable location from the displayed list. Continue with step [[implementation:wms:adhocpicking#select_a_product|9. Select a product]].
+  * If you do not need to use any moveable location, tap the ''No moveable location'' button and continue with step [[implementation:wms:adhocpicking&#select_a_customer_logistic_unit|7. Select a customer logistic unit]].
+{{ :implementation:wms:functional:pickingflows:adhoc:08.png |Identify or select a moveable}}
+====7. Select a customer logistic unit====
+When there is a picked logistic unit with an open picklist for the same customer and ship to address, the system displays the //Select a customer logistic unit// screen.
+You have the following options:
+  * If you want to perform the picking onto an existing logistic unit, scan the SSCC of the logistic unit.
+  * If you want to perform the picking onto a new logistic unit, tap the ''New logistic unit'' button.
+Note: By default, only the open logistic units on the same loading dock and for the same customer are listed. When the //Allow multiple customers on SSCC?// option is enabled on the [[implementation:wms:picklistcontroller#general|picklist controller]], logistic units for other customers are also listed.
+{{ :implementation:wms:functional:pickingflows:adhoc:select_a_customer_log_unit.png |Select a customer logistic unit}}
+Continue with step [[implementation:wms:adhocpicking&#create_a_master_or_a_normal_sscc|8. Create a master or a normal SSCC]].
+====8. Create a master or a normal SSCC====
+When the //Allow to create master SSCC// option is enabled on the [[implementation:wms:picklistcontroller#general|picklist controller]], the system displays the Select a task screen. You have the following options:
+  * Tap the ''Create master SSCC'' button to pick onto a master SSCC.
+  * Tap the ''Create normal SSCC'' button to pick onto a normal SSCC.
+{{ :implementation:wms:functional:pickingflows:adhoc:create_master_sscc.png |Create a  master or a normal SSCC}}
+Continue with step [[implementation:wms:adhocpicking#select_a_product|9. Select a product]].
+====9. Select a product====
+On the Select a product screen each item with open quantity to pick is listed from the picklist.
+The following information is displayed:
   * Possible pick locations
   * Item code, description and barcode
@@ Line 116: / Line 185: @@
 {{ :implementation:wms:functional:pickingflows:adhoc:pl_product_new.png |Select a Product}}
-The //Select a Product// screen offers the following options (a-c):
+You have the following options:
+  * Scan or select a product (see section [[implementation:wms:adhocpicking#scan_or_select_a_product|9.1]])
+  * Scan the GTIN (AI 02) of the product (see section [[implementation:wms:adhocpicking#scan_the_GTIN_(AI_02)_of_the_product|9.2]])
+  * Tap the ''Logistic unit is full'' button (see section [[implementation:wms:adhocpicking#logistic_unit_is_full|9.3]])
-a) __Scan or select a product from the list__.
+===9.1. Scan or select a product===
-b) __Scan the GTIN (AI 02) of the product__.
+Scan or select a product from the list and continue with section [[implementation:wms:adhocpicking#select_a_loading_dock|10. Select a loading dock]].
-After scanning a valid GTIN (AI 02) code, step //Select SSCC or Location// is skipped and the flow immediately continues with step //Enter the Quantity//.
+===9.2. Scan the GTIN (AI 02) of the product===
-{{ :implementation:wms:functional:pickingflows:adhoc:select_a_product_gtin_.png |Scanning GTIN}}
+Scan a valid GTIN (AI 02) code and continue with the [[implementation:wms:adhocpicking&#enter_the_quantity|13. Enter the quantity]] step.
-Note: If an invalid code is scanned, the system displays the error message “The Product is not correct”. If you tap ''OK'', the system displays the //Select a Product// screen again and a valid code must be entered.
+Note: If an invalid code is scanned, the system displays the //The product is not correct// error message. If you tap ''OK'', the system displays the [[implementation:wms:adhocpicking#select_a_product|Select a product]] screen again and a valid code must be entered to proceed with the flow.
-Continue with section //19.5.2.6. Enter the Quantity//
+===9.3. Logistic unit is full===
-c) __Tap the ''Logistic Unit is Full'' button__ and then confirm that the logistic unit is full. Now the logistic label is printed and the picking process continues on another logistic unit.
+If the picking is performed on an already existing logistic unit, the ''Logistic Unit is full'' button is displayed.
+    * If the selected logistic unit is full, tap the button and then tap ''Yes'' to confirm. Now the logistic label is printed, the system displays [[implementation:wms:adhocpicking#select_a_product|Select a product]] screen again and you can continue the picking process on another logistic unit.
+    * If you tap ''No'', the picking continues on the same logistic unit and the [[implementation:wms:adhocpicking#select_a_product|Select a product]] screen is displayed.
-If you tap ''No'', the picking continues on the same logistic unit and the //Select a Product// screen is displayed.
+{{ :implementation:wms:functional:pickingflows:picking:lu_full.png |Logistic unit is full}}
-Note: The button is only available when there are products already picked on the logistic unit.
+====10. Select a loading dock====
-{{ :implementation:wms:functional:pickingflows:picking:lu_full.png |Logistic unit full}}
+When the //Choose dock on ad hoc picking// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the system displays the //Select a location// screen and a loading dock must be selected.
-====19.5.2.4. Select a loading dock====
+Note: The setting applies to Picklist and Route tasks.
-When the //Choose dock on ad hoc picking// setting is enabled on the [[implementation:wms:picklistcontroller|pick list controller]], the loading dock can be selected.
-{{ :implementation:wms:functional:pickingflows:adhoc:pl_location.png |Location}}
+{{ :implementation:wms:functional:pickingflows:adhoc:pl_location.png |Select a loading doc}}
-====19.5.2.5. Scan SSCC or location====
+Continue with section [[implementation:wms:adhocpicking&#express_ad_hoc_picking|11. Express Ad Hoc Picking]].
-<WRAP center round todo 100%>
+====11. Express Ad Hoc Picking====
-If the **Express Ad Hoc Picking** setting is enabled on the [[internal:wms:picklistcontroller|pick list controller]], the //Scan SSCC or Location// screen is skipped after selecting or scanning a product. Instead, after the //Select a Product// screen, the system immediately displays the //Enter the Quantity// screen. If you are using the Express Ad Hoc Picking function, now continue with section [[implementation:wms:adhocpicking&#enter_the_quantity|19.5.2.6. Enter the Quantity]].
-</WRAP>
+If the //Express Ad Hoc Picking// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the //Scan SSCC or Location// screen (step [[implementation:wms:adhocpicking#scan_sscc_or_location|12]]) is skipped after selecting or scanning a product on the [[implementation:wms:adhocpicking#select_a_product|Select a product]] screen. You have the following options:
+  * If the item is available on one single location, the system immediately displays the Enter the quantity screen.
+  * If the item is available on more than one location, the system displays the Select a location screen. You can scan the location or select it from the list and then the system displays the Enter the quantity screen.
+{{ :implementation:wms:functional:pickingflows:adhoc:express_ad_hoc_picking.png |Express Ad Hoc Picking}}
+Continue with step [[implementation:wms:adhocpicking#enter_the_quantity|13. Enter the quantity]].
+====12. Scan SSCC or location====
 On the //Scan SSCC or Location// screen the following information is displayed:
@@ Line 156: / Line 236: @@
 {{ :implementation:wms:functional:pickingflows:adhoc:pl_sscc.png |Scan SSCC or Location}}
-Now the system offers the following options (a-d):
+You have the following options:
-a) If the item must be skipped, press the ''Skip Item'' button and on the next screen, select a reason for not picking the full stock (at least 10 characters).
+  * Scan the source SSCC (see section [[implementation:wms:adhocpicking#scan_the_source_sscc|12.1]])
+  * Scan a pick location (see section [[implementation:wms:adhocpicking#scan_a_pick_location|12.2]])
+  * Select a pick location (see section [[implementation:wms:adhocpicking#select_a_pick_location|12.3]])
+  * Select another moveable location (see section [[implementation:wms:adhocpicking#other_tasks|12.4]])
+  * Skip the item (see section [[implementation:wms:adhocpicking#skip_the_item|12.5]])
-{{ :implementation:wms:functional:pickingflows:adhoc:reason_1.png |}}
-b) Scan the source SSCC.
+===12.1. Scan the source SSCC===
-c) If the product has no SSCC, scan a pick location. Now the //Scan a Product// screen is displayed. Scan the product or click ''Select a Product'' and select the necessary product from the list.
+Scan the source SSCC and continue with step[[implementation:wms:adhocpicking#enter_the_quantity|13. Enter the quantity]].
+===12.2. Scan a pick location===
+If the product has no SSCC, scan a pick location and the Scan a product screen is displayed. Scan the product or tap the ''Select a product'' button and select the necessary product from the list.
 {{ :implementation:wms:functional:pickingflows:adhoc:scan_location.png |Scan a Location}}
-d) If the product to pick has no SSCC, it is also possible to select the necessary location from a list by proceeding as follows.
+Continue with step [[implementation:wms:adhocpicking#enter_the_quantity|13. Enter the quantity]].
+===12.3. Select a pick location===
+If the product to pick has no SSCC, it is also possible to select the necessary location from a list as follows.
   - Tap ''No SSCC'' and the system displays the //Scan a Location// screen. \\
   - Tap ''Select Location''. \\
-  - Select a pick location from the displayed list. Every location in the warehouse with available stock of the item is listed. \\
+  - Select a pick location from the displayed list. All locations in the warehouse with available stock of the item are listed. \\
-  - Now the //Scan a Product// screen is displayed. Scan the product or click ''Select a Product'' and select the necessary product from the list.
+  - The Scan a product screen is displayed. Scan the product or tap the ''Select a product'' button and select the necessary product from the list.
 {{ :implementation:wms:functional:pickingflows:adhoc:select_location_2.png |Select a Location}}
 Note:
-  * The ''No SSCC'' button is not displayed if the //Ad Hoc: Force to Scan SSCC// setting is enabled on [[implementation:wms:picklistcontroller|pick list controller]].
+  * The ''No SSCC'' button is not displayed if the //Ad Hoc: Force to Scan SSCC// setting is enabled on [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]].
-  * Based on the //Reason requirements when skipping first location// setting on the [[implementation:wms:picklistcontroller|pick list controller]], a reason might be required when selecting a location different from the first suggested one.
+  * If the //Allow ad hoc picking from bulk locations// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the system displays bulk locations (non-pick locations) as well.
+  * The //Reason requirements when skipping first location// setting on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]] defines if a reason is required when selecting a location that is different from the first suggested one.
+  * If the //Show Stock for Location// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the Select a pick location screen shows the free stock quantity of the selected item for each location listed on the screen.
-====19.5.2.6. Enter the quantity ====
+{{ :implementation:wms:functional:pickingflows:adhoc:select_a_pick_location.png |Select a Pick Location}}
-Add the quantity to pick and click on the right arrow.
+Continue with step [[implementation:wms:adhocpicking#enter_the_quantity|13. Enter the quantity]].
-Note: By default the quantity displayed in the quantity input field is one. If the //Ad hoc: Auto fill quantity// setting is enabled on the [[implementation:wms:picklistcontroller|pick list controller]], the displayed quantity is the quantity to pick.
+===12.4. Other tasks===
+If you are using a moveable location, the ''Other tasks'' button is displayed on the Scan SSCC or location screen and if you tap the button, you have the following options:
+  * If you tap the ''Other mov. loc.'' button, the system displays the Identify moveable location screen. You can replace the previously selected movable location with another moveable location and then the system goes back to the [[implementation:wms:adhocpicking#select_a_product|Select a product screen]].
+  * If the item must be skipped, tap the ''Skip item'' button (see section [[implementation:wms:adhocpicking#skip_the_item|12.5]]).
+{{ :implementation:wms:functional:pickingflows:adhoc:07.png |Other tasks}}
+===12.5. Skip the item===
+If the item must be skipped, tap the ''Skip Item'' button and on the next screen, select a reason for not picking the full stock (at least 10 characters).
+  * If there is no more item in the picklist, the system displays the //All items are picked// screen. Tap ''OK'' and the system goes back to the [[implementation:wms:adhocpicking#select_a_picklist|Select a picklist]] screen.
+  * If there is another item in the picklist, the system goes back to the [[implementation:wms:adhocpicking#select_a_product|Select a product]] screen.
+{{ :implementation:wms:functional:pickingflows:adhoc:reason_1.png |Skipping item}}
+====13. Enter the quantity====
+Add the quantity to pick and tap the right arrow.
 {{ :implementation:wms:functional:pickingflows:adhoc:enter_the_quantity.png |Enter the Quantity}}
-<WRAP center round help 100%>If there is not enough free stock, the following message is displayed:
+Note:
-\\ //There is not enough free stock. Please enter a new quantity.//
+  * By default, the quantity displayed in the quantity input field is 1. If the //Ad hoc: Auto fill quantity// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the quantity to pick is displayed in the quantity input field of the screen.
+  * If there is not enough free stock, the following message is displayed: //There is not enough free stock. Please enter a new quantity//. Tap ''OK'' and the system displays the [[implementation:wms:adhocpicking&#enter_the_quantity|Enter the quantity]] screen again.
-Tap ''OK'' and the system displays the //Enter the Quantity// screen again so that you can enter a new quantity.</WRAP>
+Next step:
+  * Customer Collect task:
+    * If there is another item to pick, continue with step [[implementation:wms:adhocpicking&#customer_collectselect_a_task1|14. Customer Collect: Select a task]]. \\
+    * If there is no item to pick, continue with step [[implementation:wms:adhocpicking&#all_items_are_picked|15. All items are picked]]. \\
+  * Picklist task or Route task:
+    * If there is another item to pick, continue with step [[implementation:wms:adhocpicking#select_a_product|9. Select a product]].
+    * If there is no item to pick, continue with step with step [[implementation:wms:adhocpicking&#all_items_are_picked|15. All items are picked]].
-If there is another product in the pick list to be picked, the system displays the //Select a Product// screen and you can go through the same steps in the flow.
+====14. Customer Collect: Select a task====
-Note: If the //Ad hoc picking: Keep picking the same item// setting is enabled on the [[implementation:wms:picklistcontroller|pick list controller]], the next product can only be selected if everything from the previously selected product is already picked.
+If there is another item to pick, you have the following options on the Select a task screen:
+  * Tap the **Go to customer** button to go back to the [[implementation:wms:adhocpicking#select_a_picklist|Select a picklist]] screen.
+  * Tap the **Pick more items** button to go back to the [[implementation:wms:adhocpicking#select_a_product|Select a product]] screen and continue the picking.
-====19.5.2.7. All items are picked ====
+{{ :implementation:wms:functional:pickingflows:adhoc:cc_task2.png |Task}}
-If there is no more item to be picked, the system displays the following screen:
+====15. All items are picked====
-{{ :implementation:wms:functional:pickingflows:adhoc:all_items_are_picked.png |All Items are Picked}}
+The system displays the message //All items are picked//. Tap ''OK''.
-Click ''OK'' and the status of the pick list is now //Picked//.
+{{ :implementation:wms:functional:pickingflows:adhoc:all_items_are_picked.png |All items are picked}}
-=====19.5.3. Route=====
+Note:
-Scan or select a route from the list. \\
+  * If the //Ad hoc picking: Keep picking the same item// setting is enabled on the [[implementation:wms:picklistcontroller#ad_hoc_picking|picklist controller]], the next product to pick can only be selected if the maximum pick quantity of the previously selected product is picked.
-Every open route that contains at least one pick list will be listed.
+  * If the full quantity of the selected item is picked and the //204 - Picking: after item is picked// [[implementation:wms:printevents_list|print event]] is set for the picklist type (on the [[implementation:wms:printevents|Print Events]] tab of the Organizational Structure), the system asks if you want to print a label. To proceed with the printing tap ''OK''.
-Displayed information:
+Next step:
-  * Route date
-  * Route number
-  * Route description (Template code)
-{{ :implementation:wms:functional:pickingflows:adhoc:route.png |Route}}
+  * Customer Collect task:
+    * If the picking process is performed on a movable location, the picklist status is picked. You can start the flow again and confirm the goods (see step [[implementation:wms:adhocpicking#customer_collect_picklistselect_a_task|5. Customer Collect: Select a task]]) or start the [[implementation:wms:flows_packing|packing process]] with the Packing flow, the Item Packing flow or the Mobile Packing flow.
+    * If no movable location is used during the picking process, you start the flow again and confirm the goods (see step [[implementation:wms:adhocpicking#customer_collect_picklistselect_a_task|5. Customer Collect: Select a task]]).
-====19.5.3.1. Select a pick list====
+  * Picklist and Route tasks:
-Select a pick list from the list. Every open pick list linked to the route are listed. \\
+    * If the picking process is performed on a movable location, the picklist status is picked and you can start the [[implementation:wms:flows_packing|packing process]] with the Packing flow, the Item Packing flow or the Mobile Packing flow.
-The sorting of the routes depends on the //‘Route picking pick list order by’// setting on the [[implementation:wms:picklistcontroller|pick list controller]].
+    * If no movable location is used during the picking process, the status of the picklist is defined by the //Always status picked?// setting of the [[implementation:wms:plty|Produmex Picklist Types UDT (PMX_PLTY)]].
+      * If the setting is enabled, the status of the picklist is picked at the end of the flow and you can proceed with the [[implementation:wms:consolidated_packing|Consolidated Packing flow]].
+      * If the setting is disabled, the status of the picklist is packed at the end of the flow and you can proceed with the [[implementation:wms:shipping|Shipping flow]].
+====16. Customer Collect: Select a product to confirm====
+On the Select a product to confirm screen every picked item from the picklist is displayed.
 Displayed information:
-  * Shipping ID
+  * Code of the loading dock
-  * Pick list number
+  * Item code, description and barcode
-  * Customer name and address
+  * Quantity to load
-  * Due date
-After the pick list has been selected, proceed with the picking as described in [[implementation:wms:adhocpicking#pick_list|2.2. Pick list]].
+Scan or select a product from the list to pack and tap the right arrow button. Continue with step [[implementation:wms:adhocpicking&#customer_collectproduct_confirmation|17. Customer Collect: Product confirmation]].
+Note: If you want to stop the loading, tap the ''Stop confirmation'' button and the system goes back to the [[implementation:wms:adhocpicking#customer_collect_picklistselect_a_task|Select a task screen]].
+{{ :implementation:wms:functional:pickingflows:adhoc:cc_product_conf.png |Product confirmation}}
+====17. Customer Collect: Product confirmation====
+On the confirmation screens tap ''Yes'' to confirm that all products are loaded. The system displays the message //The picklist has been finished.// Tap ''OK''.
+The status of the picklist is closed and the system generates the Sales Delivery document.
+{{ :implementation:wms:functional:pickingflows:adhoc:11.png |Product confirmation}}
+If you Tap ''No'' on the first confirmation screen, the system asks you to check the SSCC and the quantity during the confirmation. Scan or select the SSCC and add the item quantity.
+{{ :implementation:wms:functional:pickingflows:adhoc:12.png |Identify SSCC}}
+====18. Customer Collect: Confirm all picked goods====
+Tap the ''Yes'' button to confirm in one step that all picked items are loaded. The system closes the picklist and creates the Sales Delivery document. \\
+If you tap the ''No'' button, the system goes back to the [[implementation:wms:adhocpicking#customer_collect_picklistselect_a_task|Select a task]] screen without confirming the loading.
+{{ :implementation:wms:functional:pickingflows:adhoc:15.png |Confirm all picked goods}}
-{{ :implementation:wms:functional:pickingflows:adhoc:route_pl.png |Select pick list}}

User Tools

Site Tools

About wiki

Products

General Information

Differences

Page Tools
